Product Name

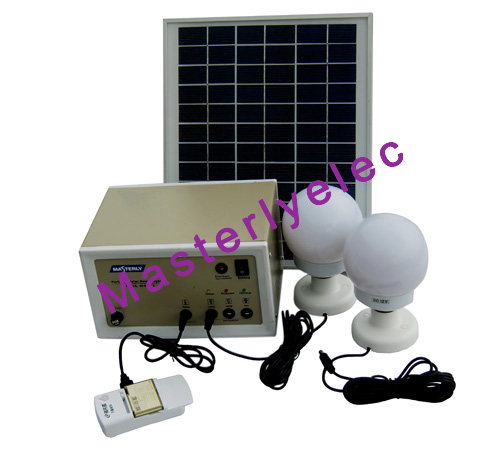

Small solar lighting system with phone charger MSL04-01B-10w

Model Number

MSL04-01B-10w

Charging Time

8~10 hours

Certificate

CE,RoHS,ISO9001

Protection Level

IP44

3W LED Lamp(2pcs)

3W LED lamp

Luminous flux                         (lm)

130 per light

LED CCT                                 (K)

6000

Weight                                     (kg)

0.2

Big size                                   (mm)

110*110*170

Operation time

>50,000H

Working temperature

-20°~65°

LED Color

Warm white

Shell material

PC

Volt                                          (V)

DC 12V

Connector wire

3m(5m or 10m)

Solar panel 10W(1pcs)

Monocrystalline or Polycrystalline silicon solar panel

Weight                                 (kg)

1.0

Solar panel size                (mm)

335*280*170

Power max                         (W)

10

Vmp                                     (V)

17.6

Voc                                      (V)

21.6

Imp                                     (A)

0.59

Isc                                       (A)

0.62

Connector wire

3m(5m or 10m)

12V7Ah battery and control box(1pcs)

1)        Body material:Metallic body

2)        12V7Ah DC rechargeable sealed Lead-Acid battery

3)        Over charge/discharge protection

4)        Indicative light of charging,output and low power
