Solar flood light ( LED power 1w~ 5w )

MSL04-05

MSL04-05

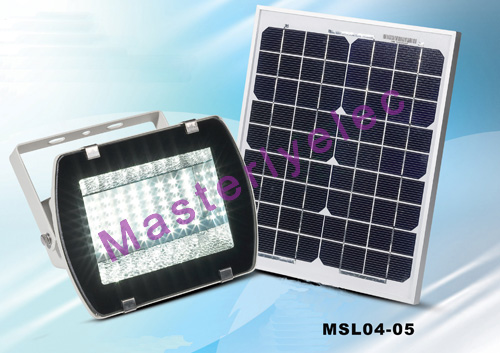

 Solar flood light MSL04-05:

The light is designed with an automatic circuit-protection and maintenance-free battery. It is superbright,waterproof and durable.The light is solar powered and pollution free,very good for outdoor use such as picnicing,fishing and canping.

------------------------------------------------------------------------------------------------------------------------------

Features:

1. CE and RoHS approved.

2. Die-casting aluminum casing and high intensity toughened glass cover

3. High efficiency and power factor LED driver

4. Wide radiation angle, huge lighting area

5. Start without delay and flicker free

6. Good color rendering

7. Warm and cold color temperature are available

8. High shock & vibration resistant

9. Ideal heat dissipation design

10. No UV & IR, No Blinking and No Mercury

11. Patented fixture design

12. Energy saving system, saving 50% energy than the conventional Metal halide lamp, Sodium Light or HPS light

------------------------------------------------------------------------------------------------------------------------------

Specification:

Product name:

 Solar outdoor light MSL04-05

Model Number:

MSL04-05

Solar power

Monocrystalline or Polycrystalline silicon solar panel

18V,10W

LED flood light

Weight(kg):

1.0

Solar panel size(mm):

335*280*17

Power max(W):

10

Vmp(V):

17.6

Voc(V):

21.6

Imp(A):

0.59

Isc(A):

0.62

Connector wire:

3m(5m or 10m)

LED flood light

LED q’ty:

54pcs

Flood light size(mm):

283(L)×211(W)×225(D)

Flood light weight(kg):

3.7

Luminous flux(lm):

280.12 (54pcs LED)

Light time:

7 hours

LED CCT(K):

Pure white 6000~6500K

Operation time:

>50,000H

Working temperature:

-20°~65°

LED Color:

Warm white

Body material:

Cast aluminum

Battery

Maintenance-free battery

Lead-Acid

12V,4Ah

Protection

Overload, Low voltage

Certificate

CE,RoHS,ISO9001

Control

ON/OFF automatically controlled by ambient illuminance

Charging time

8~10 hours

Protection level

IP56

Beam angle

120°-150°



------------------------------------------------------------------------------------------------------------------------------

Solar security light application:



1. Factories
2. Gymnasiums
3. Yards
4. Advertising boards
5. Buildings
6. Lawns
7. Garden designs
8. Some other outdoor places where need flood lighting and lights decoration
